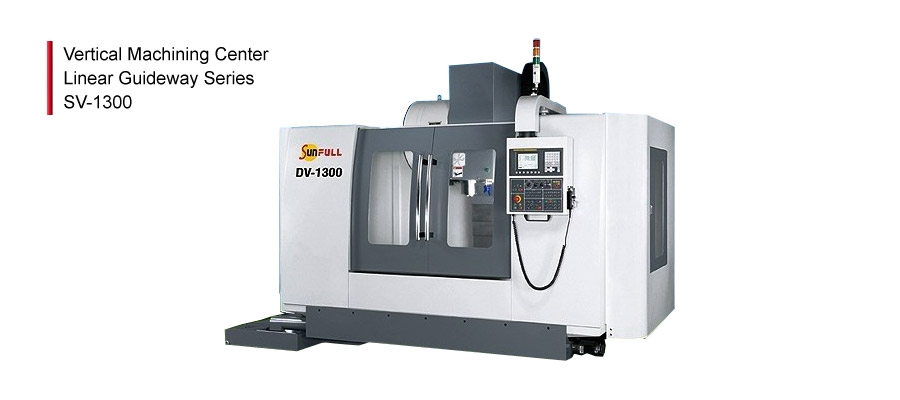

Product Name : SV-1300/1500
Product No : SV-13001500
Enlargement
Optimal Structure Design High rigidity! Lifetime Stability!Oversized column |
Choice of 8,000 10,000 ,12,000 or 15,000 rpm high speed spindles are designed for high speed machining requirement |
High precision class C3 ball screws feature outstanding vibration dampening capability for high precision machining |
Extra wide column bottom and base ensure superior stability during high speed machining |
Compacted and simplified machine structure for space saving |
Increased Y-axis travel for increasing working capacity(models SV-1300/1500) |
MODEL | Unit | SV-1300 | SV-1500 | ||
Y travel 4-Linear way | Y travel 4-Linear way | ||||
TRAVEL | |||||
X axis travel | mm | 1300 | 1500 | ||
Y axis travel | mm | 750 | 750 | ||
Z axis travel | mm | 700 | 700 | ||
Distance from spindle nose to table surface | mm | 150-850 | 180-850 | ||
TABLE | |||||
Table area | mm | 1300 x 750 | 1500 x 750 | ||
Max. load table | kgs | 1000 | 1000 | ||
T-slot | mm | 5 x 18 x 150 | 5 x 18 x 150 | ||
SPINDLE | Standard speed 8000 rpm | Standard speed 8000 rpm | |||
Spindle taper | type | BT-40 | BT-40 | BT-40 | BT-40 |
Spindle speed | rpm | 8000 / 10000 | 10000 / 12000 / 15000 | 8000 / 10000 | 10000 / 12000 / 15000 |
Spindle drive | type | Belt | Direct Drive | Belt | Direct Drive |
Spindle motor | kw | 7.5 / 11 | 7.5 / 11 | 7.5 / 11 | 7.5 / 11 |
Spindle Cooling | type | Oil cooler ( std. ) | Oil cooler ( std. ) | ||
FEED RATE | |||||
Rapid traverse ( X,Y,Z ) | m/min | 30 / 30 / 24 | 30 / 30 / 24 | ||
Cutting feed rate | mm/mim | 1-15000 | 1-15000 | ||
X,Y,Z axis servo motor ( FANUC ) | kw | 4 / 4 / 7 | 4 / 4 / 7 | ||
X,Y,Z axis servo motor ( MITSUBISHI ) | kw | 4.5 | 4.5 | ||
ATC | |||||
Magazine type | type | Carousel | Arm | Carousel | Arm |
Tool magazine capacity | pcs | 16 | 24 | 16 | 24 |
Max. tool diameter | mm | 100 / 150 | 80 / 150 | 100 / 150 | 80 / 150 |
Max. tool length | mm | 300 | 300 | 300 | 300 |
Max. tool weight | kgs | 7 | 7 | 7 | 7 |
Tool selection | type | Fixed | Random | Fixed | Random |
Other | |||||
Power consumption | KVA | 30 ( 40 opt. ) | 30 ( 40 opt. ) | ||
Machine Dia ( L x W x H ) | mm | 4500 x 3500 x 3000 | 4500 x 3500 x 3000 | ||
Machine weight | kgs | 10000 | 11000 |
Standard Accessories | Optional Accessories | |||
. | Full splash guard | . | Variable 20/24/30 tools ATC | |
. | Spindle speed 8000 rpm ( BT-40 ) | . | Spindle motor 11/15 kw, 15/18.5kw, 18/23kw | |
. | Spindle motor 7.5/11 kw | . | Belt type Spindle speed 6000 rpm ( BT-50 ) | |
. | Armless ATC 16 tools ( BT-40 ) | . | Belt type Spindle speed 10000/12000 rpm ( BT-40 ) | |
. | Rigid tapping | . | Built-in type spindle speed 16000/20000/24000/30000 rpm | |
. | Cooling system | . | Rear coolant flushing device | |
. | Auto lubrication system | . | Oil skimmer | |
. | Spindle oil cooler unit | . | Coolant through spindle | |
. | Heat exchanger | . | Chain type chip conveyor + Chip cart | |
. | Telescopic covers for 3 axes | . | The 4th axis rotary table | |
. | Work lamp | . | The 4th and 5th rotary table | |
. | Three-color signal light | . | ZF gear box | |
. | Tool box | . | Roller type linear guideway | |
. | Coolant gun | |||
. | Screw type chip conveyor |
