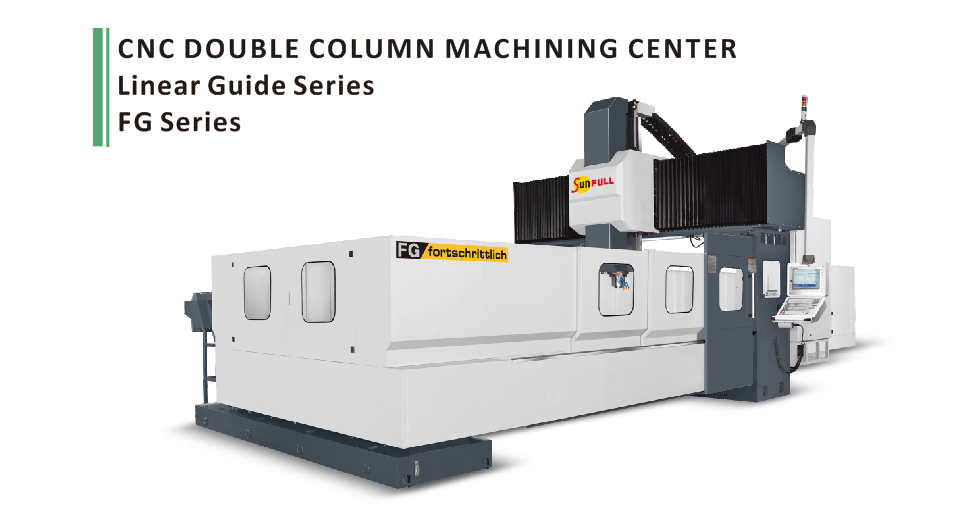

FG Series
Product Name : FG Series
Product No : FGSeries
Enlargement
The enhancement of stability and efficiency |
Triple R55 roller type linear guide ways in X axis |
Dual R65 roller type linear guide ways in Y axis |
Standard boxway or optional linear guide way in Z axis |
Model | Unit | FG-3226 | FG-4226 | FG-5226 | FG-6226 | FG-8226 | FG-10226 | ||||||||
TRAVEL | |||||||||||||||
X axis | mm | 3,200 | 4,200 | 5,200 | 6,200 | 8,200 | 10,200 | ||||||||
Y axis | mm | 2,600 | |||||||||||||
Z axis | mm | 1,000 (1,200 opt.) | |||||||||||||
Spindle nose to table | mm | 150-1150 (150-1,350 opt.) | |||||||||||||
Distance between columns (max. workpiece width) |
mm | 2,800 | |||||||||||||
TABLE | |||||||||||||||
Table dimensions (L) | mm | 3,000 | 4,000 | 5,000 | 6,000 | 8,000 | 10,000 | ||||||||
Table dimensiions (W) | mm | 2,400 | |||||||||||||
T-slot (width x number x pitch) | 28 x 13 x 180 | ||||||||||||||
Max. table load | kg | 11,000 | 13,000 | 15,000 | 17,000 | 21,000 | 25,000 | ||||||||
Spindle | |||||||||||||||
Spindle motor (cont./30 minute rated) | kW | 18.5 / 22 (22 / 26 opt.) | |||||||||||||
Spindle speed (gear box) | rpm | 4,500 (6,000 opt.) | |||||||||||||
Spindle taper | BT-50 / ISO-50 / CAT-50 | ||||||||||||||
Feed | |||||||||||||||
Rapid feed-rate (X/Y/Z) | m/min | 15 / 15 / 12 | 12 / 15 / 12 | 8 / 15 /12 | |||||||||||
Cutting feed-rate | mm/min | 7,000 | |||||||||||||
ATC | |||||||||||||||
Tool storage capacity | pcs | 32T (24T / 40T / 60T / 90T opt.) | |||||||||||||
Max. tool length | mm | 350 | |||||||||||||
Max. tool weight | kg | 20 | |||||||||||||
Tool size (D) (Full tools) | mm | 125 | |||||||||||||
Max. tool size (D) (next pockets empty) |
mm | 245 | |||||||||||||
Accuracy (X, Y, Z) | |||||||||||||||
Positioning accuracy | mm | ±0.005 / 300 ; ±0.015 / Full travel | |||||||||||||
mm | P0.035 | P0.045 | |||||||||||||
Repeatability | mm | ±0.003 | |||||||||||||
mm | Ps0.028 | Ps0.03 | |||||||||||||
Other | |||||||||||||||
Electric power consumption | kVA | 65 | |||||||||||||
Pneumatic input pressure | kg/cm2 | 6.5 | |||||||||||||
Machine weight (approx.) | tons | 38 | 42 | 48 | 53 | 63 | 83 | ||||||||
Machine floor space (L x W x H) (approx.) |
m | 10.4 x 6.8 x 5.4 | 13.0 x 6.8 x 5.4 | 14.8 x 6.8 x 5.4 | 17.3 x 6.8 x 5.4 | 21.7 x 6.8 x 5.4 | 26.1 x 6.8 x 5.4 | ||||||||
* All specification are subjected to change without prior notice. |
Accessory List | |||
Category | Description | FG series | |
Controller | FANUC 0i-MF controller | ● | |
FANUC 31i-MB controller | ◎ | ||
MITSUBISHI M70 controller | ◎ | ||
SIEMENS 840D controller | ◎ | ||
HEIDENHAIN iTNC530 / TNC640 controller | ◎ | ||
Spindle | 18.5/22 kW spindle motor | ● | |
22/26 kW spindle motor | ◎ | ||
4,200 2-step gear drive spindle | x | ||
4,500 2-step gear drive spindle | ● | ||
6,000 2-step gear drive spindle | ◎ | ||
8,000/10,000rpm direct drive spindle | ◎ | ||
Z travel extension/ higher column | Z travel 800mm | x | |
Z travel 1,000mm | ● | ||
Z travel 1,200 mm | ◎ | ||
Z travel 1,500 mm | x | ||
100mm higher column (standard Z travel) | ◎ | ||
200mm hither column (standard Z travel) | ◎ | ||
300mm higher column (standard Z travel) | ◎ | ||
400mm higher column (standad Z travel) | ◎ | ||
ATC | Automatic tool changer 32 tools | ● | |
Automatic tool changer 24 tools | ◎ | ||
Automatic tool changer 40 / 60 tools | ◎ | ||
Automatic tool changer 90 / 120 tools | ◎ | ||
Milling head function | Manual : 90° angular milling head / hight-speed 2-axis head / universal head / extend head boring head | ◎ | |
Semi-automatic : 90° angular milling head / 2-axis head / extend head / boring head ( Vertical / Horizontal ATC and AHS inapplicable) | ◎ | ||
Automatic : 90° angular milling head / 2-axis head / extend head / boring head | ◎ | ||
Vertical / Horizontal Automatic Tool Changer (40 / 60 / 90 tools) | ◎ | ||
Manual head station (Table type) | ◎ | ||
Manual head station (Arm type) | ◎ | ||
Automatic head station | ◎ | ||
Splash guard | Semi splash guard | * | |
Fully enclosed splash guard (roof excluded) | * | ||
Fully encolsed splash guard (roof included) | * | ||
Mechanical | X / Y / Z axes absolute pulse coder | ● | |
Rigid tapping | ● | ||
Twin hydraulic cylinders | ● | ||
Nitrogen balancing system | ● | ||
Automatic lubrication system | ● | ||
Spindle oil cooler | ● | ||
Air blast through spindle | ● | ||
Manual pulse generator | ● | ||
Working lamp | ● | ||
3-color alarm lamp | ● | ||
RS-232 interface | ● | ||
Heat exchanger for electrical cabinet | ● | ||
Water gun and air gun interface | ● | ||
Cutting coolant unit | ● | ||
Twin auger chip removal system | ● | ||
Belt type chip conveyor with cart | ● | ||
Sub-table | ◎ | ||
3 axes manual pulse generator for mold processing | ◎ | ||
Coolant through spindle at 20 / 40 / 70 bar | ◎ | ||
Coolant through tool holder interface | ◎ | ||
Air conditioner for electrical cabinet | ◎ | ||
Transformer | ◎ | ||
Oil skimmer | ◎ | ||
Oil mist device | ◎ | ||
Others | Leveling bolts & blocks | ● | |
Tool box | ● | ||
CE norm | ◎ | ||
Measurement | HEIDENHAIn linear scale | ◎ | |
Automatic tool measuring system | ◎ | ||
Automatic work piece measuring system | ◎ | ||
4th axis function | CNC rotary table | ◎ | |
4th axis preparation | ◎ | ||
Optional : ◎ Standard : ● N/A : X Depending on the model : * |
