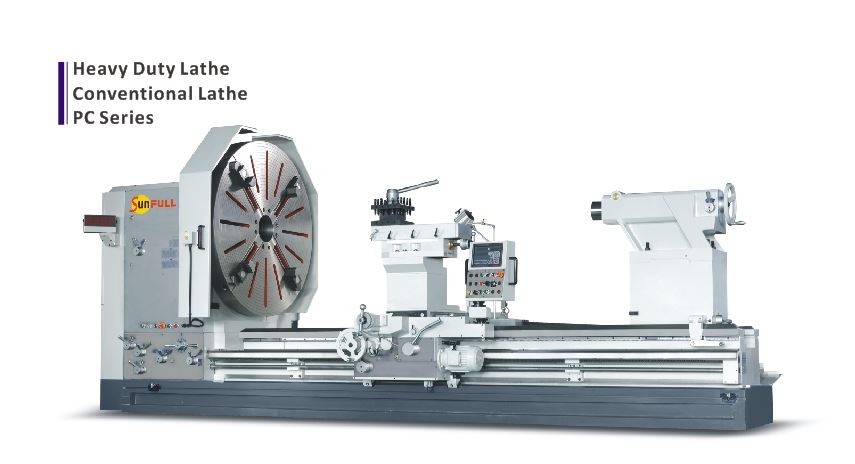

PC Series
Product Name : PC Series
Product No : PCSeries
Enlargement
One piece bed, floor type casting |
2 shear bed way with extra way supporting the apron |
All ways are hardened and ground |
Alloy steel spindle with opposed taper roller bearings |
Hardened and ground gears, shafts and cross slide ways |
Electromagnetic spindle brake |
18-speed geared headstock |
6-way rapid traverse and power feed to top slide |
Totally enclosed universal inch / metric gear box |
Carriage position device |
Dual voltage spindle motor, 30 to 75 HP |
Pressurized one shot lube system for cross slide and carriage |
ITME | Unit | PC-60 | PC-70 | PC-80 |
CAPACITY | ||||
Center height | mm (in) | 805 ( 31.69 ) | 930 ( 36.61 ) | 1,055 ( 41.53 ) |
Swing over bed | mm (in) | 1,560 ( 61.41 ) | 1,805 ( 71.06 ) | 2,050 ( 80.70 ) |
Swing over cross slide | mm (in) | 1,100 ( 43.30 ) | 1,350 ( 53.14 ) | 1,600 ( 62.99 ) |
Swing over gap | mm (in) | 2,120 ( 83.46 ) | 2,370 ( 93.30 ) | 2,620 ( 103.14 ) |
Gap width from headstock | mm (in) | 600 ( 23.62 ) | ||
Distance between centers | mm (in) | 1,500~12,000 ( 60~480) | ||
BED | ||||
Width ( W/O Auxiliary guide ) | mm (in) | 920 ( 36.22 ) | ||
Width ( W Auxiliart guide ) | mm (in) | 1,090 ( 42.91 ) | ||
CARRIAGE | ||||
Cross slide travel | mm (in) | 1,020 ( 40.15 ) | ||
Compound rest travel | mm (in) | 600 ( 23.62 ) | ||
4-way tool post width | mm (in) | 310 ( 12.20 ) | ||
THREAD FEEDS RANGE | ||||
Longitudinal feed | mm/rev (in/rev) | 0.045~2.55 ( 0.00180~0.1 ) | ||
Cross feed | mm/rev (in/rev) | 0.023~1.28 ( 0.0009~0.05 ) | ||
Longitudinal rapid feed | mm/min (in/min) | 2,000 ( 78.74 ) | ||
Cross rapid feed | mm/min (in/min) | 1,270 ( 50 ) | ||
Metric thread | mm/rev (kinds) | 1~56 ( 60 ) | ||
Inch thread | TPI (kinds) | 1/2~28 ( 60 ) | ||
Module thread | MOD (kinds) | 0.25~14 ( 60 ) | ||
Diametral pitch thread | DP (kinds) | 2~112 ( 60 ) | ||
Pitch of leadscrew | mm (TPI) | 12 ( 2 ) | ||
TAILSTOCK | ||||
Quill diameter | mm (in) | 160 ( 6.29 ) | ||
Quill travel | mm (in) | 200 ( 7.87 ) | ||
Inner taper of quill | MT#6 | |||
Bearing surface on bed ways | mm (in) | 760 ( 29.92 ) | ||
MOTOR | ||||
Main spindle motor (STD.) | KW (HP) | 23 ( 30 ) | ||
Main spindle motor (OPT.) | KW (HP) | 29 ( 40 ) / 37 ( 50 ) / 44 ( 60 ) / 55 ( 75 ) | ||
Coolant pump motor | KW (HP) | 0.1 ( 0.125 ) |
Standard Accessories | |
. | Thread chasing dial |
. | 2-speed tailstock quill ( manual ) |
. | 1 dead center, MT#6 |
. | Coolant pump |
. | Work lamp |
. | Follow type splash guard |
. | One piece stainless steel lead screw cover |
. | Water and oil collect plate under apron |
. | Rear side chip and water collect plate |
