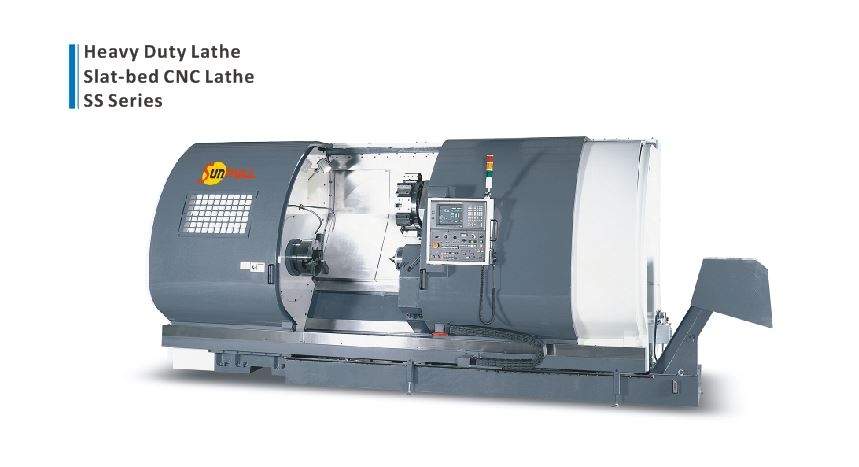

SS Series
Product Name : SS Series
Product No : SSSeries
Enlargement
One piece bed, floor type casting. |
Alloy steel spindle with opposed taper roller bearings. |
All gears in the headstock are hardened and precisely ground. |
4 automatic ranges through pneumatic shifting. |
Spindle speed ranges are automatically changed by M code. |
Infinitely variable speed are commanded by S code. |
Tool change are commanded by T code. |
Auto lubrication system is equipped for headstock and carriage, cross-slide. |
Precision tapered roller bearings are equipped on the spindle and the quill. |
The quill is heat treated and precisely ground. |
Inner taper of quill can suit MT#6 dead center or live center. |
Turcire B lining is applied on cross slide and carriage for reducing friction. |
Z axis ball screws are prtected by cover to prevent rusting and chip damage. |
ITEM | UNIT | SS-31 | SS-35 |
CAPACITY | |||
Center height | mm.(in.) | 505 (19.88) | 555 (21.85) |
Swing over bed | mm.(in.) | 750 (29.52) | 850 (33.46) |
Swing over cross slide | mm.(in.) | 670 (26.37) | 770 (30.31) |
Distance between centers | mm.(in.) | 700(27), 1200(47), 1700(67), 2200(86), 3200(126), 4200(166), 5200(206) | |
BED | |||
Width / Slant angle | mm.(in.)/deg | 1145(45.07) / 45° | |
CARRIAGE | |||
Width of cross slide | mm.(in.) | 500 (19.68) | |
TURRET | |||
Standard turret model | Baruffaldi TB320 | ||
Disc shape | Polygon Disc or VDI Disc | ||
No. of tool stations | 12 or 8 or 12 | ||
Tool shank cross section | mm.(in.) | 32 x 32 (1.25) | |
Tool shank diameter max. | mm.(in.) | 60 (2.36) | |
TRAVEL | |||
Cross slide(X-axis) travel | mm.(in.) | 420 (16.53) | |
Longitudinal(Z-axis) travel | mm.(in.) | 700(27), 1200(47), 1700(67), 2200(86), 3200(126), 4200(166), 5200(206) | |
Cutting feed rate | mm./rev(in.rev) | X-axis: 0.001~250(0.00004~9.84) Z-axis: 0.001~400(0.00004~15.75) | |
Rapid travel | M./min.(Ft.min.) | X-axis: 6(19.68) Z-axis: 10(32.7) | |
Ball screw diameter | mm.(in.) | X-axis: 50(1.97) Z-axis: 80(3.15) | |
TAILSTOCK | |||
Quill type | Built - in type, Rotating tailstock quill | ||
Quill diameter | mm.(in.) | 160 (6.29) | |
Quill travel | mm.(in.) | 200 (7.87) | |
Inner taper of quill | MT#6 | ||
MOTOR | |||
Headstock oil refrigerator | 18,000 BTU / 4,500 K cal | ||
Main spindle motor | KW(HP) | 30/37(40/50)-STD. 37.5/45(50/60)-OPT. | |
Axis servo motor | KW(HP) | X-axis: 7(9.387) Z-axis: 7(9.387) | |
Hydraulic pump motor | KW(HP) | 3.7 (5) | |
Coolant pump motor | KW(HP) | 1.05 (1.4) | |
Controller | |||
Standard | FANUC 0i-T series | ||
Optional | FANUC 31i series,Other required |
Standard Accessories | |
. | Bed width : 1145mm |
. | BTD-160, TB-320 turret |
. | Rotatory tailstock quill with 160mm diameter |
. | Motorized tailstock body and quill movement |
. | Fanuc 0i-TD built-in manual guide |
