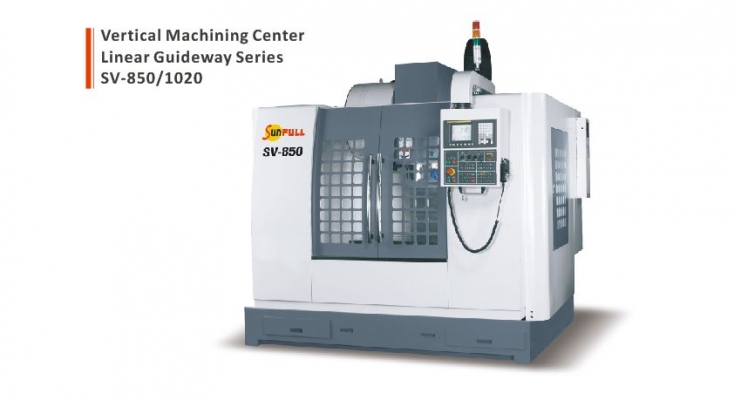

SV-850/1020
Product Name : SV-850/1020
Product No : SV-8501020
Enlargement
Optimal Structure Design High rigidity! Lifetime Stability! |
The major structures are manufactured from meehanite cast iron, stress relieved and combined with scientific rib reinforcement to ensure formation – free operations |
Increased width on the column bottom with box-type structure provides maximum stability especially when performing high speed cutting |
Linear ways on three axes assure high feed rates and extremely smooth motion |
Extra wide span between linear ways greatly increases machines stability |
MODEL | Unit | SV-850 | SV-1020 | ||
TRAVEL | |||||
X axis travel | mm | 850 | 1020 | ||
Y axis travel | mm | 550 | 550 | ||
Z axis travel | mm | 580 | 580 | ||
Distance from spindle nose to table surface | mm | 120-700 | 120-700 | ||
TABLE | |||||
Table area | mm | 1020 x 550 | 1200 x 500 | ||
Max. load table | kgs | 600 | 800 | ||
T-slot | mm | 4 x 18 x 125 | 4 x 18 x 125 | ||
SPINDLE | |||||
Spindle taper | type | BT-40 | BT-40 | BT-40 | BT-40 |
Spindle speed | rpm | 8000 / 10000 | 10000 / 12000 / 15000 | 8000 / 10000 | 10000 / 12000 / 15000 |
Spindle drive | type | Belt | Direct Drive | Belt | Direct Drive |
Spindle motor | kw | 5.5 / 7.5 | 5.5 / 7.5 | 7.5 / 11 | 7.5 / 11 |
Spindle Cooling | type | Oil cooler ( std. ) | Oil cooler ( std. ) | ||
FEED RATE | |||||
Rapid traverse ( X,Y,Z ) | m/min | 30 / 30 / 20 | 30 / 30 / 20 | ||
Cutting feed rate | mm/mim | 1 - 15000 | 1-15000 | ||
X,Y,Z axis servo motor ( FANUC ) | kw | 1.8 / 1.8 / 2.5 | 1.8 / 1.8 / 2.5 | ||
X,Y,Z axis servo motor ( MITSUBISHI ) | kw | 2 / 2 / 3.5 | 2 / 2 / 3.5 | ||
ATC | |||||
Magazine type | type | Carousel | Arm | Carousel | Arm |
Tool magazine capacity | pcs | 16 | 24 | 16 | 24 |
Max. tool diameter | mm | 100 / 150 | 80 / 150 | 100 / 150 | 80 / 150 |
Max. tool length | mm | 250 | 250 | 250 | 250 |
Max. tool weight | kgs | 7 | 7 | 7 | 7 |
Tool selection | type | Fixed | Random | Fixed | Random |
Other | |||||
Power consumption | KVA | 20 | 20 | ||
Machine Dia ( L x W x H ) | mm | 2940 x 2390 x 2750 | 2940 x 2390 x 2750 | ||
Machine weight | kgs | 6200 | 6800 |
Standard Accessories | Optional Accessories | |||
. | Full splash guard | . | Variable 20/24 tools ATC | |
. | Spindle speed 8000 rpm ( BT-40 ) | . | Spindle motor 11/15 kw | |
. | Spindle motor 7.5/11 kw | . | Spindle motor 15/18.5 kw | |
. | Armless ATC 16 tools ( BT-40 ) | . | Belt type spindle speed 10000/12000 rpm | |
. | Rigid tapping | . | Direct drive spindle speed 12000/15000 rpm | |
. | Cooling system | . | Built-in type spindle speed 16000/20000/24000/30000 rpm | |
. | Auto lubrication system | . | Rear coolant flushing device | |
. | Spindle oil cooler unit | . | Oil skimmer | |
. | Heat exchanger | . | Coolant through spindle | |
. | Telescopic covers for 3 axes | . | Chain type chip conveyor + Chip cart | |
. | Work lamp | . | The 4th axis rotary table | |
. | Three-color signal light | . | The 4th and 5th rotary table | |
. | Tool box | . | ZF gear box | |
. | Coolant gun | . | Roller type linear guideway | |
. | Screw type chip conveyor |
