Product Name : SV-550 APC
Product No : SV-550APC

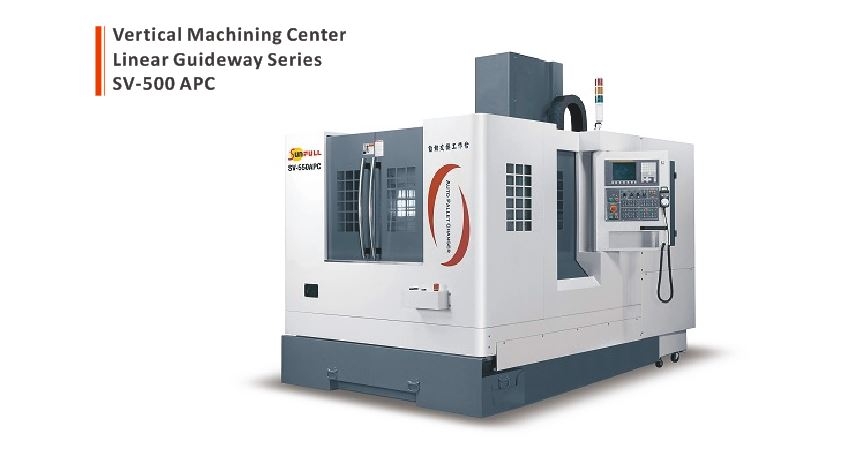

SV-550 APC
    Enlargement
    Inquiry
     proimages/Pic/4.JPG Optimal Structure Design High rigidity! Lifetime Stability!
    proimages/Pic/I16.gif The machine structure is constructed from high quality Meehanite cast iron and stress released to ensure great                    rigidity and prolonged precision
    proimages/Pic/I16.gif All axes with high precision linear guideway ensure rapid movement and accurate positioning
    proimages/Pic/I16.gif The column bottom is specially designed with A-shaped structure to increase machine stability while machining
     MODEL Unit SV-550 APC

    TRAVEL
    X axis travel mm 550
    Y axis travel mm 400
    Z axis travel mm 350
    Distance from spindle nose to table surface  mm 100-450
    TABLE
    Table area mm 600 x 400
    Max. load table kgs 200 x 2
    T-slot mm 3 x 14 x 100
    SPINDLE
    Spindle taper type BT-40
    Spindle speed rpm 8000
    Spindle drive type Belt
    Spindle motor kw 5.5 / 7.5
    Spindle Cooling type oil cooler
    FEED RATE
    Rapid traverse ( X,Y,Z ) m/min 30 / 30 / 24
    Cutting feed rate mm/mim 1 - 10000
    X,Y,Z axis servo motor ( FANUC ) kw 1.2 / 1.2 / 1.8
    X,Y,Z axis servo motor ( MITSUBISHI ) kw 1.5 / 1.5 / 2
    ATC
    Magazine type type Arm
    Tool magazine capacity pcs 24
    Max. tool diameter mm 80 / 150
    Max. tool length mm 250
    Max. tool weight kgs 7
    Tool selection type Random
    Other
    Power consumption KVA 20
    Machine Dia ( L x W x H ) mm 2000 x 2960 x 2360
    Machine weight kgs 3750
    Standard Accessories   Optional Accessories
    .  Full splash guard   .  Belt type spindle speed 10000/12000 rpm
    .  Spindle speed 8000 rpm ( BT-40 )   .  Direct drive spindle speed 12000/15000 rpm
    .  Spindle motor 5.5/7.5 kw   .  Built-in type spindle speed 24000/30000/36000 rpm
    .  Armless type ATC 16 tools ( BT-40 )   .  Rear coolant flushing device
    .  Arm type ATC 24 tools    .  Oil skimmer
    .  Auto pallet exchanger   .  Coolant through spindle
    .  Rigid tapping
    .  Cooling system
    .  Auto lubrication system
    .  Spindle oil cooler unit
    .  Heat exchanger
    .  Telescopic covers for 3 axes
    .  Work lamp
    .  Three-color call light
    .  Tool box
    .  Coolant gun
