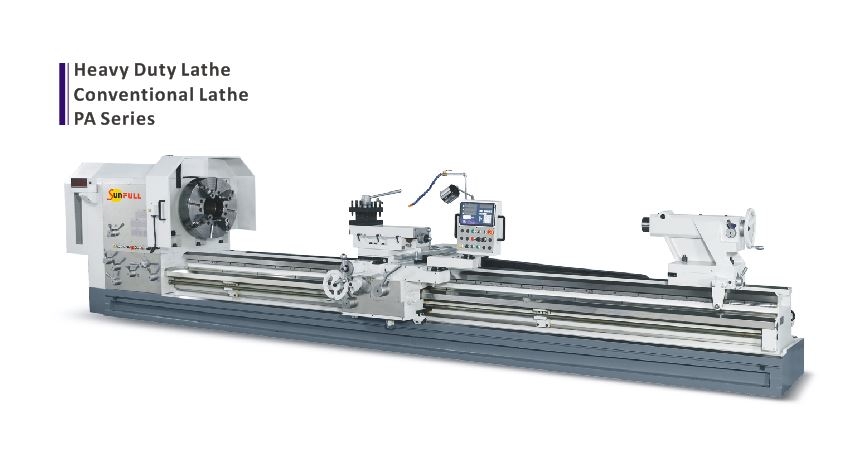

PA Series
Product Name : PA Series
Product No : PASeries
Enlargement
One piece bed, floor type casting |
2 shear bed way with extra way supporting the apron |
All ways are hardened and ground |
Alloy steel spindle with opposed taper roller bearings |
Hardened and ground gears, shafts and cross slide ways |
Electromagnetic spindle brake |
18-speed geared headstock |
6-way rapid traverse and power feed to top slide |
Totally enclosed universal inch / metric gear box |
Carriage position device |
Dual voltage spindle motor, 20 to 50 HP |
Pressurized one shot lube system for cross slide and carriage |
ITME | Unit | PA-35 | PA-40 | PA-45 | PA-50 |
CAPACITY | |||||
Center height | mm (in) | 445 ( 17.51 ) | 510 ( 20.07 ) | 575 ( 22.63 ) | 645 ( 25.39 ) |
Swing over bed | mm (in) | 880 ( 34.64 ) | 1,010 ( 39.76 ) | 1,135 ( 44.68 ) | 1,275 ( 50.19 ) |
Swing over cross slide | mm (in) | 615 ( 24.21 ) | 745 ( 29.33 ) | 875 ( 34.44 ) | 1,015 ( 39.96 ) |
Swing over gap | mm (in) | 1,340 ( 52.75 ) | 1,470 ( 57.87 ) | 1,600 ( 62.99 ) | 1,740 ( 63.50 ) |
Gap width from headstock | mm (in) | 600 ( 23.62 ) | |||
Distance between centers | mm (in) | 1,500~12,000 ( 60~480) | |||
BED | |||||
Width ( W/O Auxiliary guide ) | mm (in) | 560 ( 22.04 ) | |||
Width ( W Auxiliart guide ) | mm (in) | 660 ( 25.98 ) | |||
CARRIAGE | |||||
Cross slide travel | mm (in) | 670 ( 26.37 ) | |||
Compound rest travel | mm (in) | 450 ( 17.71 ) | |||
4-way tool post width | mm (in) | 205 ( 8.07 ) | |||
THREAD FEEDS RANGE | |||||
Longitudinal feed | mm/rev (in/rev) | 0.045~2.55 ( 0.00180~0.1 ) | |||
Cross feed | mm/rev (in/rev) | 0.023~1.28 (0.0009~0.05 ) | |||
Longitudinal rapid feed | mm/min (in/min) | 2,000 ( 78.74 ) | |||
Cross rapid feed | mm/min (in/min) | 1,270 ( 50 ) | |||
Metric thread | mm/rev (kinds) | 1~56 ( 60 ) | |||
Inch thread | TPI (kinds) | 1/2~28 ( 60 ) | |||
Module thread | MOD (kinds) | 0.25~14 ( 60 ) | |||
Diametral pitch thread | DP (kinds) | 2~112 ( 60 ) | |||
Pitch of leadscrew | mm (TPI) | 12 ( 2 ) | |||
TAILSTOCK | |||||
Quill diameter | mm (in) | 115 ( 4.52 ) | |||
Quill travel | mm (in) | 200 ( 7.87 ) | |||
Inner taper of quill | MT#6 | ||||
Bearing surface on bed ways | mm (in) | 500 ( 19.68 ) | |||
MOTOR | |||||
Main spindle motor (STD.) | KW (HP) | 14 ( 20 ) |
|||
Main spindle motor (OPT.) | KW (HP) | 18 ( 25 ) / 22 ( 30 ) / 29 ( 40 ) / 37 ( 50 ) |
|||
Coolant pump motor | KW (HP) | 0.1 ( 0.125 ) |
Standard Accessories | |
. | Thread chasing dial |
. | 2-speed tailstock quill ( manual ) |
. | 1 dead center, MT#6 |
. | Coolant pump |
. | Work lamp |
. | Follow type splash guard |
. | One piece stainless steel lead screw cover |
. | Water and oil collect plate under apron |
. | Rear side ship and water collect plate |
