FS Series

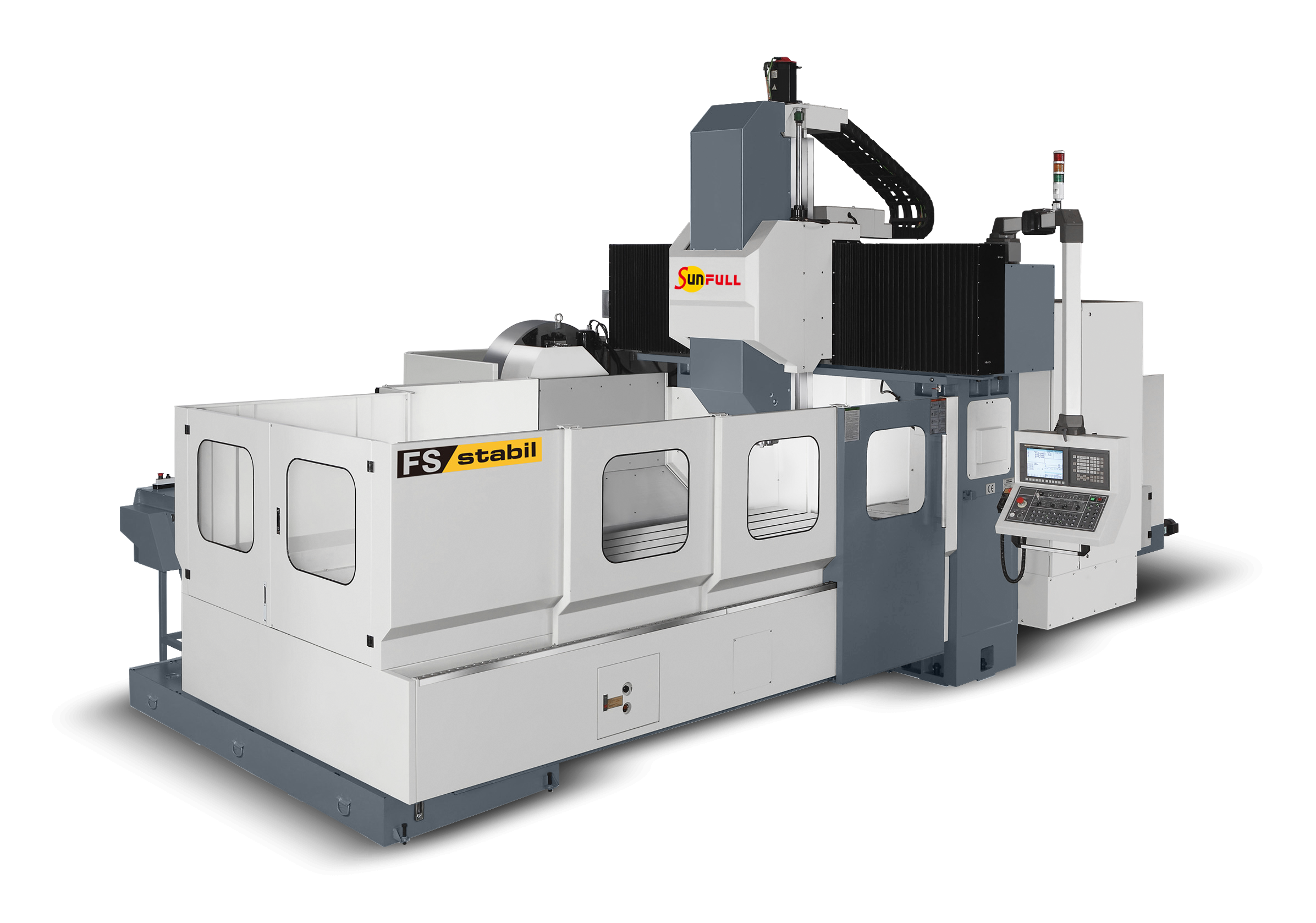

Product Name : FS Series
Product No : FSSeries
Enlargement
Designed for Rigid Machining Unmatched Performance |
Step type crossb eam with 2-step gear type spindle to realize excellent machining speed and efficiency |
Model | Unit | FS-2216 / 20 | FS-2716 / 20 | FS-3216 / 20 | FS-4216 / 20 |
TRAVEL | |||||
X axis | mm | 2,200 | 2,700 | 3,200 | 4,200 |
Y axis | mm | 1,600 / 2,000 | |||
Z axis | mm | 800 (1,000 opt.) | |||
Spindle nose to table | mm | 150-950 (150-1,150 opt.) | |||
Distance between columns (max. workpiece width) |
mm | 1,700 / 2,100 | |||
TABLE | |||||
Table dimensions (L) | mm | 2,000 | 2,500 | 3,000 | 4,000 |
Table dimensiions (W) | mm | 1,400 / 1,700 | |||
T-slot (width x number x pitch) | 22 x 7 x 180 / 22 x 9 x 180 | ||||
Max. table load | kg | 8,000 | 9,000 | 10,000 | 12,000 |
Spindle | |||||
Spindle motor (cont./30 minute rated) | kW | 18.5 / 22 (22 / 26 opt.) | |||
Spindle speed (gear box) | rpm | 4,500 (6,000 opt.) | |||
Spindle taper | BT-50 / ISO-50 / CAT-50 | ||||
Feed | |||||
Rapid feed-rate (X/Y/Z) | m/min | 12 / 12 / 15 | 10 / 12 /15 | ||
Cutting feed-rate | mm/min | 7,000 | |||
ATC | |||||
Tool storage capacity | pcs | 32T (24T / 40T / 60T opt.) | |||
Max. tool length | mm | 350 | |||
Max. tool weight | kg | 20 | |||
Tool size (D) (Full tools) | mm | 125 | |||
Max. tool size (D) (next pockets empty) | mm | 245 | |||
Accuracy (X, Y, Z) | |||||
Positioning accuracy | mm | ±0.005 / 300 ; ±0.015 / Full travel | |||
mm | P0.03 | P0.035 | |||
Repeatability | mm | ±0.003 | |||
mm | Ps0.025 | Ps0.028 | |||
Other | |||||
Electric power consumption | kVA | 65 | |||
Pneumatic input pressure | kg/cm2 | 6.5 | |||
Machine weight (approx.) | tons | 20 / 22 | 22 / 24 | 24 / 26 | 28 / 30 |
Machine floor space (L x W x H) (approx.) | m | 8.2 x 5.1 (5.5) x 4.7 | 9.2 x 5.1 (5.5) x 4.7 | 10.2 x 5.1 (5.5) x 4.7 | 12.2 x 5.1 (5.5) x 4.7 |
* All specification are subjected to change without prior notice. |
Accessory List | |||
Category | Description | FS series | |
Controller | FANUC 0i-MF controller | ● | |
FANUC 31i-MB controller | ◎ | ||
MITSUBISHI M70 controller | ◎ | ||
SIEMENS 840D controller | ◎ | ||
HEIDENHAIN iTNC530 / TNC640 controller | ◎ | ||
Spindle | 18.5/22 kW spindle motor | ● | |
22/26 kW spindle motor | ◎ | ||
4,500 2-step gear drive spindle | ● | ||
6,000 2-step gear drive spindle | ◎ | ||
8,000/10,000rpm direct drive spindle | ◎ | ||
Z travel extension/ higher column | Z travel 800mm | ● | |
Z travel 1,000mm | ◎ | ||
Z travel 1,200 mm | x | ||
100mm higher column (standard Z travel) | x | ||
200mm hither column (standard Z travel) | ◎ | ||
300mm higher column (standard Z travel) | ◎ | ||
400mm higher column (standad Z travel) | x | ||
ATC | Automatic tool changer 32 tools | ● | |
Automatic tool changer 24 / 40 / 60 tools | ◎ | ||
Automatic tool changer 90 tools | x | ||
Milling head function | Manual : 90° angular milling head / hight-speed 2-axis head / universal head / extend head boring head | ◎ | |
Semi-automatic : 90° angular milling head / 2-axis head / extend head / boring head ( Vertical / Horizontal ATC and AHS inapplicable) | ◎ | ||
Automatic : 90° angular milling head / 2-axis head / extend head / boring head | ◎ | ||
Vertical / Horizontal Automatic Tool Changer (40 / 60 / 90 tools) | x | ||
Manual head station (Table type) | ◎ | ||
Manual head station (Arm type) | ◎ | ||
Automatic head station | x | ||
Splash guard | Semi splash guard | ◎ | |
Fully enclosed splash guard (roof excluded) | ● | ||
Fully encolsed splash guard (roof included) | ◎ | ||
Mechanical | X / Y / Z axes absolute pulse coder | ● | |
Rigid tapping | ● | ||
Twin hydraulic cylinders | ● | ||
Nitrogen balancing system | ● | ||
Automatic lubrication system | ● | ||
Spindle oil cooler | ● | ||
Air blast through spindle | ● | ||
Manual pulse generator | ● | ||
Working lamp | ● | ||
3-color alarm lamp | ● | ||
RS-232 interface | ● | ||
Heat exchanger for electrical cabinet | ● | ||
Water gun and air gun interface | ● | ||
Cutting coolant unit | ● | ||
Twin auger chip removal system | ● | ||
Belt type chip conveyor with cart | ● | ||
Sub-table | ◎ | ||
3 axes manual pulse generator for mold processing | ◎ | ||
Coolant through spindle at 20 / 40 / 70 bar | ◎ | ||
Coolant through tool holder interface | ◎ | ||
Air conditioner for electrical cabinet | ◎ | ||
Transformer | ◎ | ||
Oil skimmer | ◎ | ||
Oil mist device | ◎ | ||
Others | Leveling bolts & blocks | ● | |
Tool box | ● | ||
CE norm | ◎ | ||
Measurement | HEIDENHAIn linear scale | ◎ | |
Automatic tool measuring system | ◎ | ||
Automatic work piece measuring system | ◎ | ||
4th axis function | CNC rotary table | ◎ | |
4th axis preparation | ◎ | ||
Optional : ◎ Standard : ● N/A : X |
