Product Name : KAN Series
Product No : KANSeries

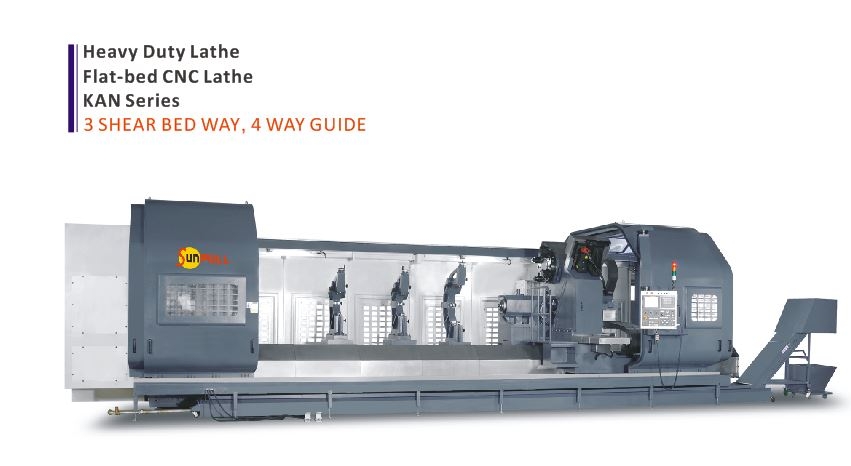

KAN Series
    Enlargement
    Inquiry
    proimages/Pic/I16.gif One piece bed, floor type casting.
    proimages/Pic/I16.gif Alloy steel spindle with opposed taper roller bearings.
    proimages/Pic/I16.gif All gears in the headstock are hardened and precisely ground.
    proimages/Pic/I16.gif 4 automatic ranges through pneumatic shifting.
    proimages/Pic/I16.gifSpindle speed ranges are automatically changed by M code.
    proimages/Pic/I16.gif Infinitely variable speed are commanded by S code.
    proimages/Pic/I16.gif Tool change are commanded by T code.
    proimages/Pic/I16.gif Auto lubrication system is equipped for headstock and carriage, cross-slide.
    proimages/Pic/I16.gif Precision tapered roller bearings are equipped on the spindle and the quill.
    proimages/Pic/I16.gif The quill is heat treated and precisely ground.
    proimages/Pic/I16.gif Inner taper of quill can suit MT#6 dead center or live center.
    proimages/Pic/I16.gif Turcire B lining is applied on cross slide and carriage for reducing friction.
    proimages/Pic/I16.gif Z axis ball screws are prtected by cover to prevent rusting and chip damage.
    ITEM UNIT KAN-80 KAN-90 KAN-100 KAN-120

    CAPACITY
    Center height mm.(in.) 1025 (40.35) 1150 (45.27) 1275 (50.19) 1400 (55.11)
    Swing over bed mm.(in.) 2050 (80.7) 2300 (90.55) 2550 (100.39) 2800 (110.23)
    Swing over cross slide mm.(in.) 1620 (63.77) 1870 (73.62) 2120 (83.46) 2370 (93.3)
    Distance between centers mm.(in.) 3000(120), 4000(160), 5000(200), 6000(240), 7000(280), 8000(320), 9000(360), 10000(400), 11000(440), 12000(480)
    BED
    Width mm.(in.) 1350 (53.14)
    CARRIAGE
    Width of cross slide mm.(in.) 600 (63.62)
    TURRET
    Standard tool post   Auto 4-way     or     Polygon Disc     or     VDI Disc
    No. of tool stations   H4,H6           or             12              or      8 or 12
    Tool shank cross section mm.(in.) 32 x 32 (1.25)
    Tool Shank diameter mm.(in.) 60 (2.5)
    TRAVEL
    Cross slide(X-axis) travel mm.(in.) 875 (34.44)
    Longitudinal(Z-axis) travel mm.(in.) 3000(120), 4000(160), 5000(200), 6000(240), 7000(280), 8000(320), 9000(360), 10000(400), 11000(440), 12000(480)
    Cutting feed rate mm./rev(in.rev) X-axis: 0.001~250(0.00004~9.84)  Z-axis: 0.001~400(0.00004~15.75)
    Rapid travel M./min.(Ft.min.) X-axis: 6(19.68)  Z-axis: 10(32.7)
    Ball screw diameter mm.(in.) X-axis: 63(2.48)  Z-axis: 120(4.72)
    TAILSTOCK
    Quill type   Built - in type, Rotating tailstock quill
    Quill diameter mm.(in.) 235 (9.25)
    Quill travel mm.(in.) 200 (7.87)
    Inner taper of quill   MT#6
    MOTOR
    Headstock oil refrigerator   18,000 BTU / 4,500 K cal
    Main spindle motor KW(HP) 30/37(40/50)-STD.     37.5/45(50/60)-OPT.
    Axis servo motor KW(HP) X-axis: 7(9.387)     Z-axis: 7(9.387)
    Hydraulic pump motor KW(HP) 3.7 (5)
    Coolant pump motor KW(HP) 1.05 (1.4)
    Controller
    Standard    FANUC 0i-T series
    Optional   FANUC 31i series,Other required
     Standard Accessories
    .  Bed width : 1350mm (53.14")
    .  H4 or V8 or V12 turret
    .  Rotatory tailstock quill with 235mm diameter
    .  Manual tailstock body and quill movement
    .  FANUC 0i-TD built-in manual quide
    .  Front and rear chip conveyor
