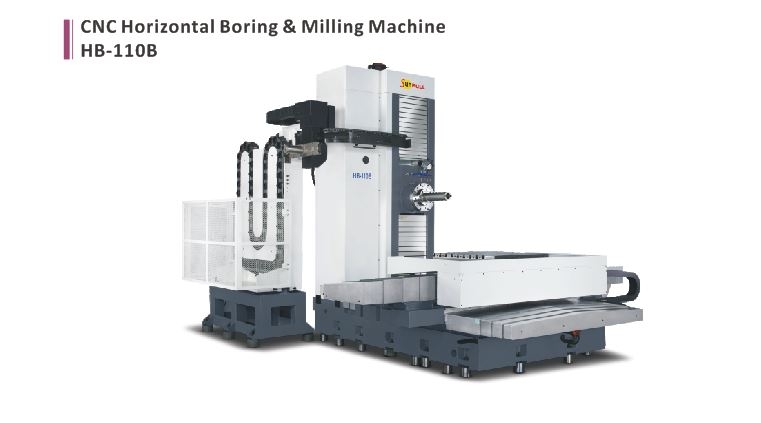

- HB-110B
HB-110B
Product Name : HB-110B
Product No : HB-110B
Enlargement
Model | Unit | HB-110B |
TABLE | ||
Table size | mm | 1000 x 1000 |
T slot ( wide x no. x pitch ) | mm | 22 x 9 x 100 |
Max. load capacity | kgs | 3000 |
Min. indexing unit | deg | 1 |
Table height from ground | mm | 1103 |
TRAVEL | ||
X axis travel | mm | 2000 |
Y axis travel | mm | 1400 |
Z axis travel | mm | 1150 |
W axis travel | mm | 500 |
Spindle nose to table center | mm | -175~1475 |
Spind center to table top | mm | 0-1400 |
SPINDLE | ||
Spindle taper | type | BT-50 |
Spindle diameter | mm | 110 |
Spindle torque max. | kg-m | 135 |
Speed / 2 steps (auto) Low-speed | rpm | 5~625 |
Speed / 2 steps (auto) Hi-speed | rpm | 626~2500 |
FEED RATE | ||
Feed rate on X/Y/Z/W axis | mm/min | 15/12/15/5 |
Feed rate of X/Y/Z axis | mm/min | 1~6000 |
Feed rate of W axis | mm/min | 1~5000 |
X/Y/Z ballcrew (Dia. / Pitch) | mm | 50/10 |
W ballscrew (Dia. / Pitch) | mm | 40/10 |
MOTORS | ||
Spindle motor | kw | 22/26 |
Servo motor for X/Y/Z/B | kw | 7 / 6 / 7 / 4 / 7 |
Centralized lubrication pump | w | 150 |
Hydraulic pump | kw | 3.7 |
Spindle oil cooler pump | kw | 1.18 |
Coolant pump | kw | 1 |
ATC | ||
Tool magazine capacity | pcs | 60 |
Pull stud | - | MAS-P50T-1 |
Max. tool diameter | mm | 125/250 w/o adjacent tool |
Max. tool length | mm | 400 |
Max. tool weight | kgs | 25 |
Tool selection | type | Sequence by shortest path |
Tool change time (approx.) | sec | 13 |
GENERAL INFORMATION | ||
Pneumatic required | kg/cm2 | 6 |
Coolant tank | L | 250 |
Machine dimension | mm | 4900 x 5100 3605 |
Machine weight | kgs | 0i-MD |
CNC contral | - | |
* Design and specifications are subject to change without prior notice. |
